Tracked Access Platform Hinowa 17.75 17MTR

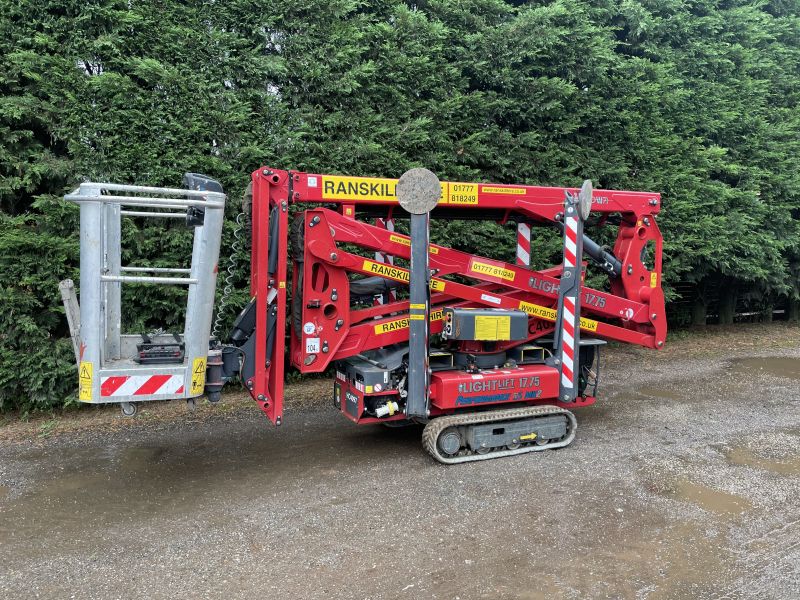

The Hinowa Tracked access platform Lightlift 17.75 is a high-performance tracked boom, providing a working height of up to 17m and maximum outreach of 7.5m.
Its dual pantograph lifting mechanism enables the operator to use the lift when it is flush against a wall, and it has an impressive platform load capacity of 230kg without restriction throughout its entire working envelope.

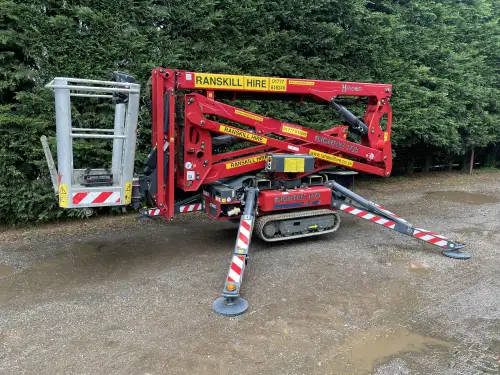

Other features include fully automatic stabiliser deployment, for quick and safe set-up various ground conditions and rough terrain.
Powered by a diesel engine combined with a mains electric motor (110V)
When the legs are down the footprint is 3200mm x 3200mm

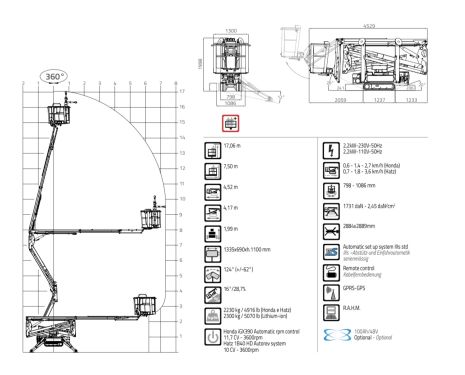

Max working height - 17.06mtr
Max horizontal outreach - 7.5mtr
Travel width W/O basket - 850mm
Travel width with basket 1550mm
Travel height - 2050mm
Travel length - 4530mm
Lift Capacity - 230kg
Weight - 2350kg
Power source - Diesel & Mains electric
Dimensions
| Name | Length | Width | Height | Weight |
|---|---|---|---|---|
| Name Hinowa 17.75 | Length 4530 mm | Width 1550 mm | Height 2050 mm | Weight 2350.00 kg |
