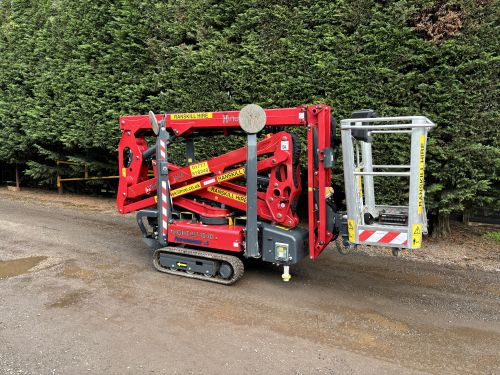

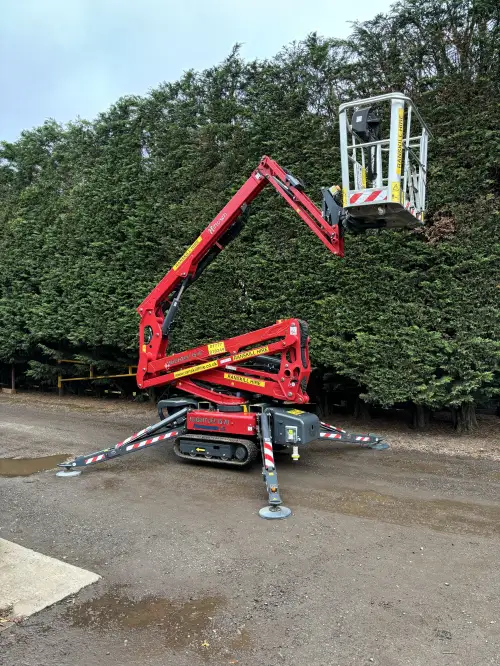

TRACKED ACCESS PLATFORM HINOWA 15.70 15MTR
The Hinowa Tracked access platform Lightlift 15.70 is a high-performance tracked boom, providing a working height of up to 15.4m and maximum outreach of 6.6m.
Its dual pantograph lifting mechanism enables the operator to use the lift when it is flush against a wall, and it has an impressive platform load capacity of 230kg without restriction throughout its entire working envelope.

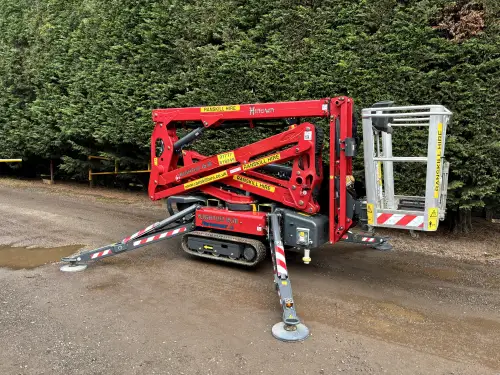

Other features include fully automatic stabiliser deployment, for quick and safe set-up various ground conditions and rough terrain.
Powered by a diesel engine combined with a mains electric motor (110V)
When the legs are down the footprint is 3200mm x 3200mm

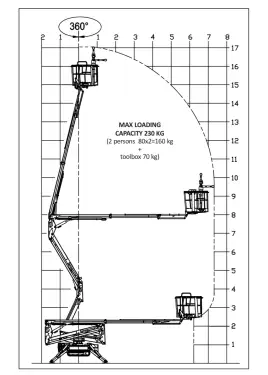

Max working height - 15.4mtr
Max horizontal outreach - 6.6mtr
Travel width W/O basket - 850mm
Travel width with basket 1550mm
Travel length - 4020mm
Travel height - 2050mm
Lift Capacity - 230kg
Weight - 1950kg
Power source - Diesel & Mains electric
Dimensions
| Name | Length | Width | Height | Weight |
|---|---|---|---|---|
| Name Hinowa 15.70 | Length 4020 mm | Width 1550 mm | Height 2050 mm | Weight 1950.00 kg |
