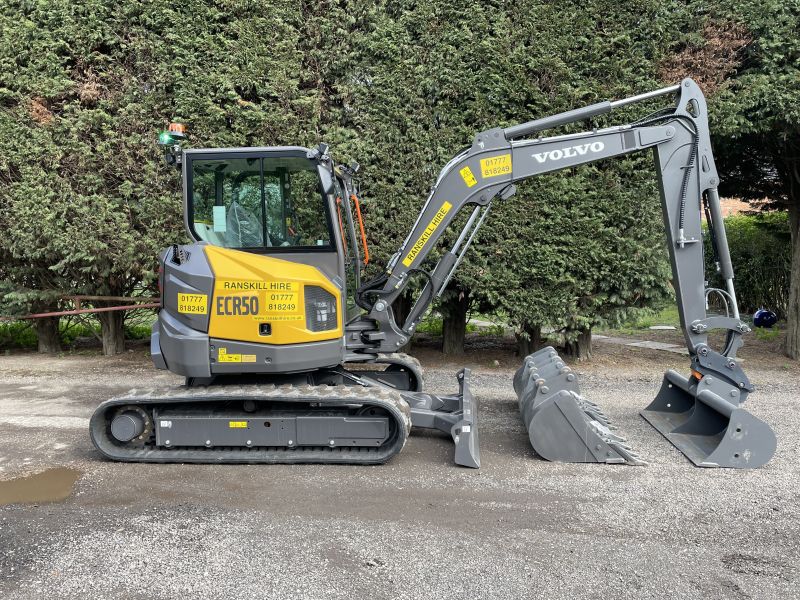

Volvo ECR50F 5t Digger
Volvo ECR50F 5 ton Mini digger
Available with a selection of buckets
Rotating Log grab also available.
With zero tail swing, the F-generation ECR50 is the perfect choice when working in confined spaces. This true 5t machine offers superior stability and best-in class lifting capacity. With intuitive and easy-to-use controls, operators can quickly get to grips with the machine.
Zero tail swing
In-track boom swing
Simple controls layout
Intuitive jogwheel and 5” color display • Proportional fingertip controls
Large travel pedals
Automatic two-speed travel
Pre-set hydraulic modes and multiple auxiliary line options
Compatible with a wide range of attachments
Overall width = 2000mm
Overall height = 2540mm
Ground clearance = 400mm
Weight = 5050kg
Maximum cutting height = 5350mm
Maximum dump height = 3750mm
Maximum digging depth = 3700mm
Maximum digging reach = 5850mm
Dimensions
| Name | Length | Width | Height | Weight |
|---|---|---|---|---|
| Name Volvo ECR50F | Length 520.00 cm | Width 200.00 cm | Height 254.00 cm | Weight 5050.00 kg |
